Our Products
✓ Easy installation
✓ LOW PROFILE
✓ Durable and versatile
There are three elements to our Aluminium Deck Framing System. The adjustable jacks, the aluminium framing and the decking substrate and fasteners. All working in harmony to give you the best decking system on the market.
Nurajack + FlippnClik Aluminium Framing + Tile/Timber Finish = Best in Class
Self Levelling Jacks
We only use Nurajack self levelling adjustable decking piles to allow the deck to be adjusted to the level of the interior living space
Aluminium Framing
Our unique patented FlippnClick Aluminium Framing clicks into the Nurajack pile, ideal for low profile tile or timber decks
Decking Substrate
Finish your deck with a tiling and/or timber decking substrate using our FlippnClick Aluminium framing & fasteners.

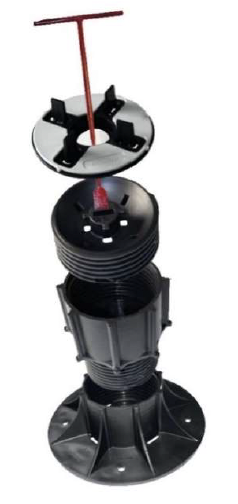

Nurajack Self Levelling Jacks
Plastic jacks, like Nurajacks, are adjustable supports used to elevate and level decking above surfaces such as concrete or waterproof membranes. Made from durable plastic, they create a stable platform, ensuring proper drainage, airflow, and ventilation beneath the deck.
Key benefits include:
- Adjustable height for leveling on uneven surfaces.
- Improved drainage and airflow, preventing moisture buildup.
- Durability against moisture, corrosion, and UV rays.
- Easy installation with no complex tools.
Nurajacks are a popular choice for elevated decking systems, especially when working over waterproof membranes, ensuring long-lasting performance with efficient water management.
FlippnClick Aluminium Framing Profiles

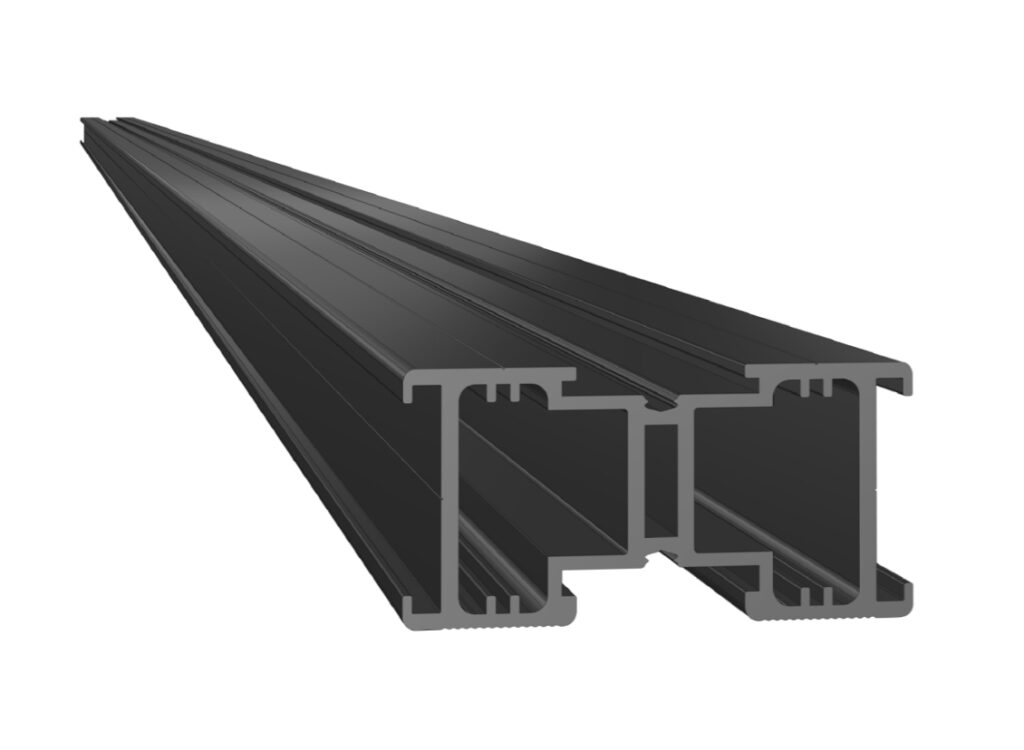

Joist/Bearer 30mm
Frame 30mm high x 60mm wide and can go as low as 30mm

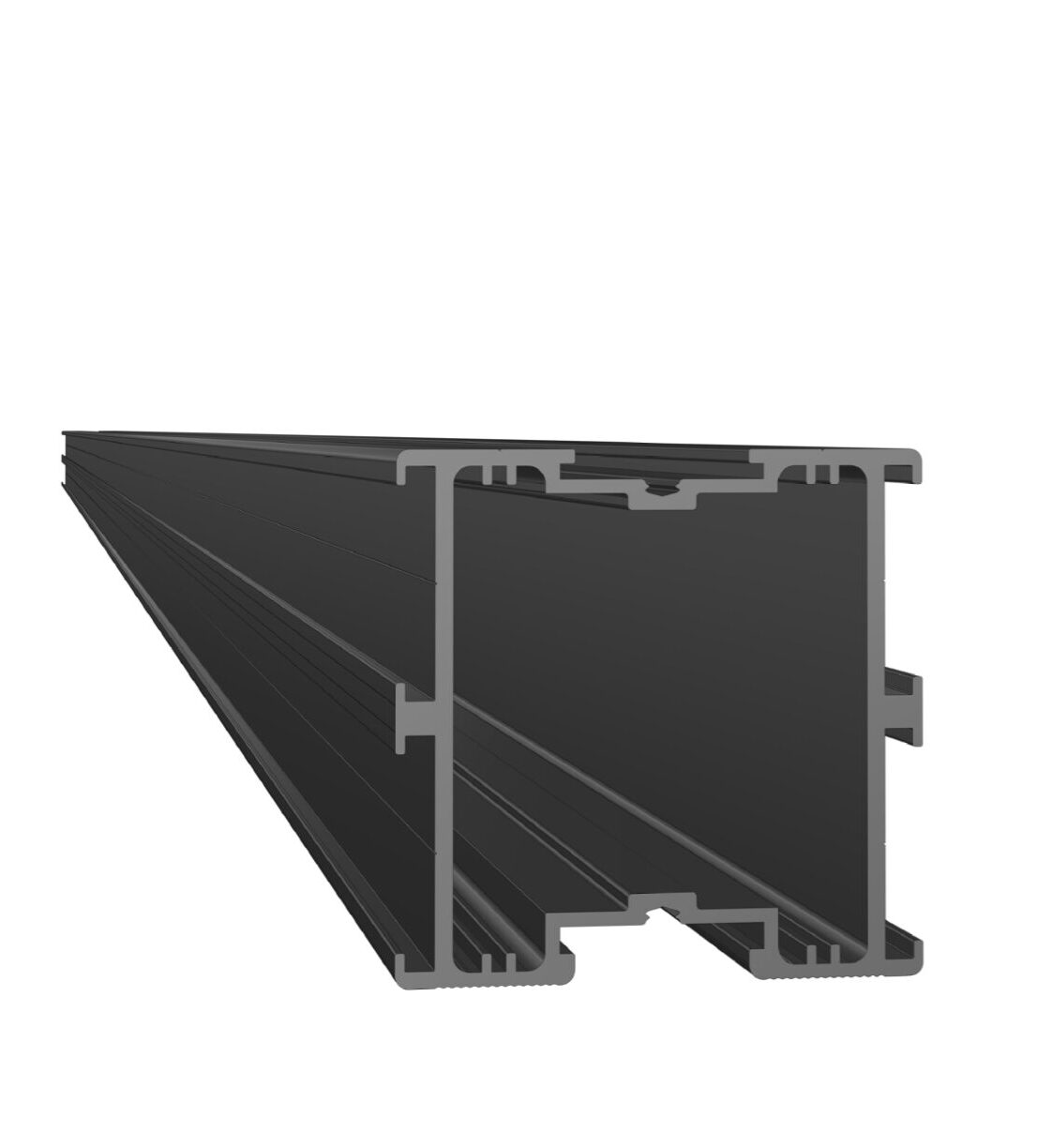

Joist/Bearer 60mm
Frame 60mm high x 60mm wide

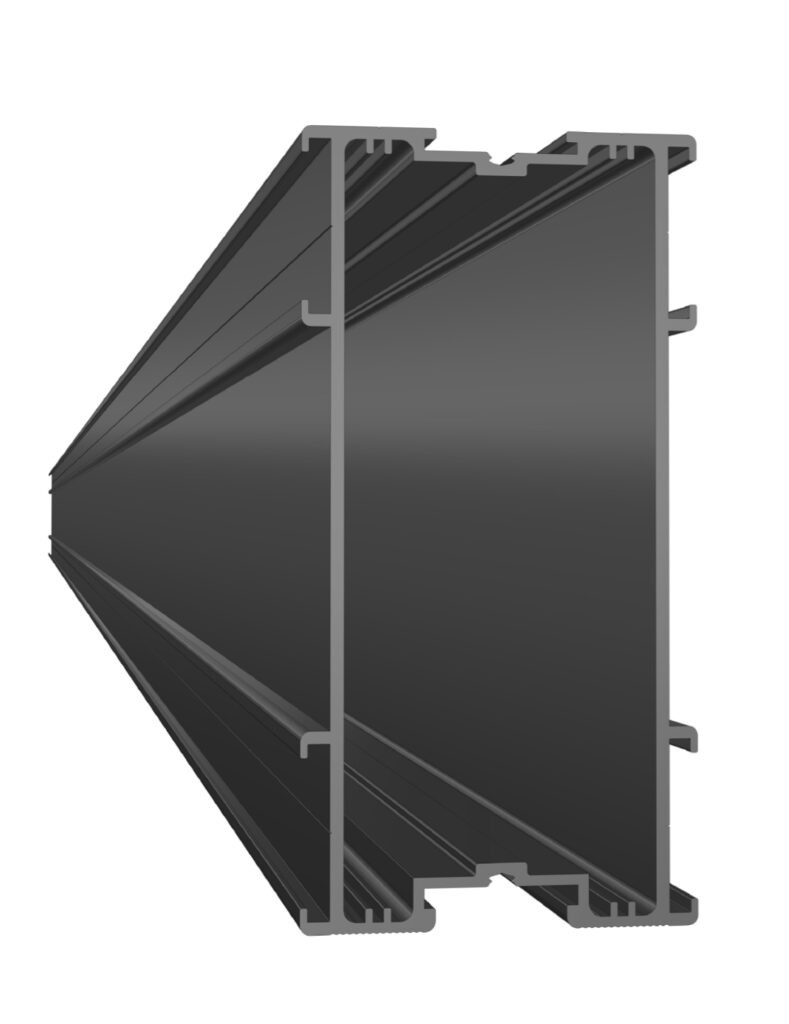

Joist/Bearer 120mm
Frame 120mm high x 60mm wide
Decking Substrates
Tile Substrate
A jack and aluminium framing solution for tiles provides a highly durable, stable, and customizable system for raised tile installations. The adjustable jacks allow for precise leveling over uneven surfaces, such as concrete or waterproof membranes, while the lightweight yet strong aluminium framing offers a robust, corrosion-resistant foundation. Thanks to the patented framing design, the system can span greater distances with fewer jacks, resulting in a more stable tile surface. This design also improves drainage and ventilation, reducing the risk of moisture buildup and tile damage. The combination of jacks and aluminium framing creates a nail-free, low-profile decking solution for tiles over concrete or waterproof membranes, ensuring easy installation, long-lasting performance, and a clean, modern finish for outdoor or high-moisture areas.
Decking Substrate

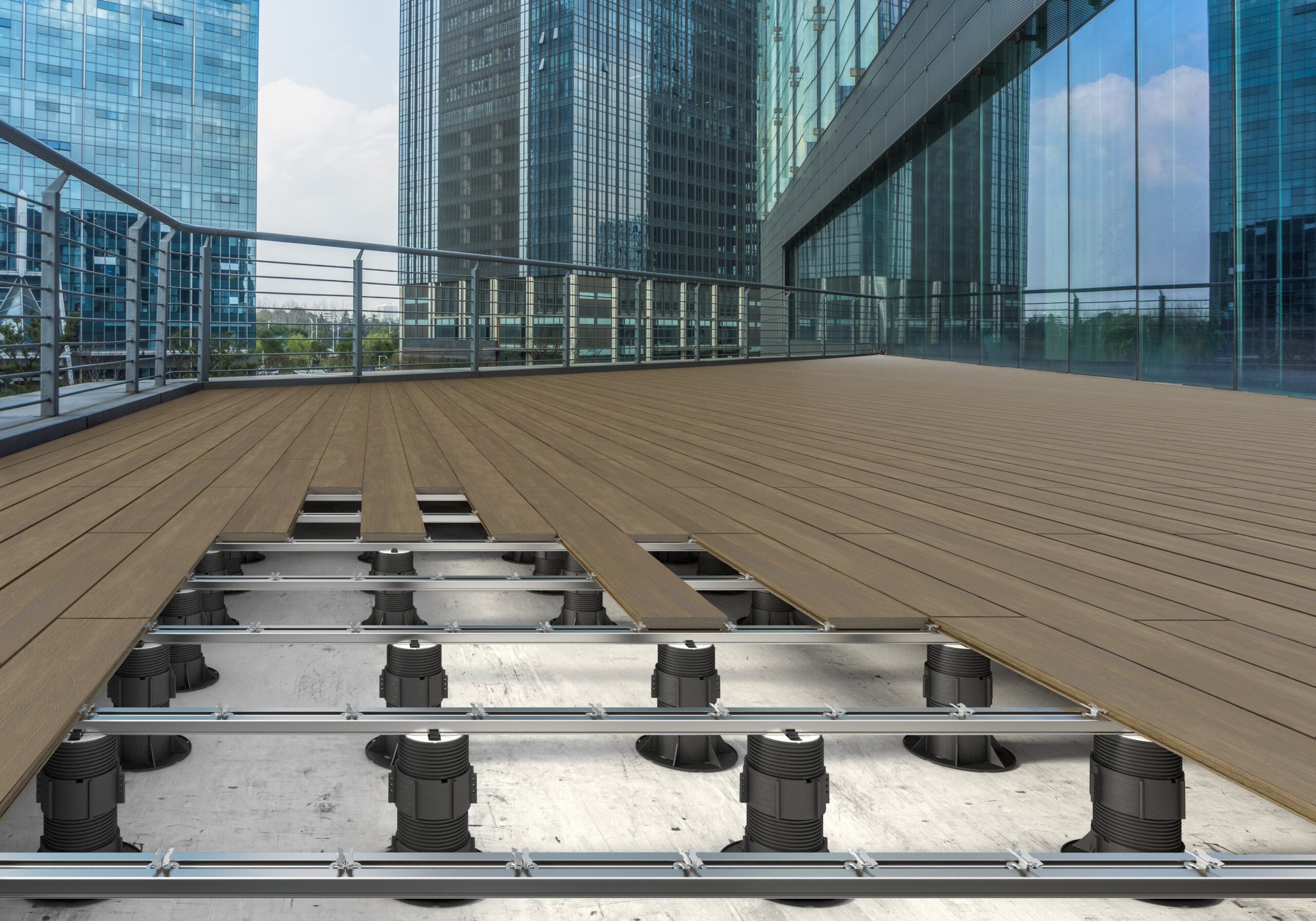

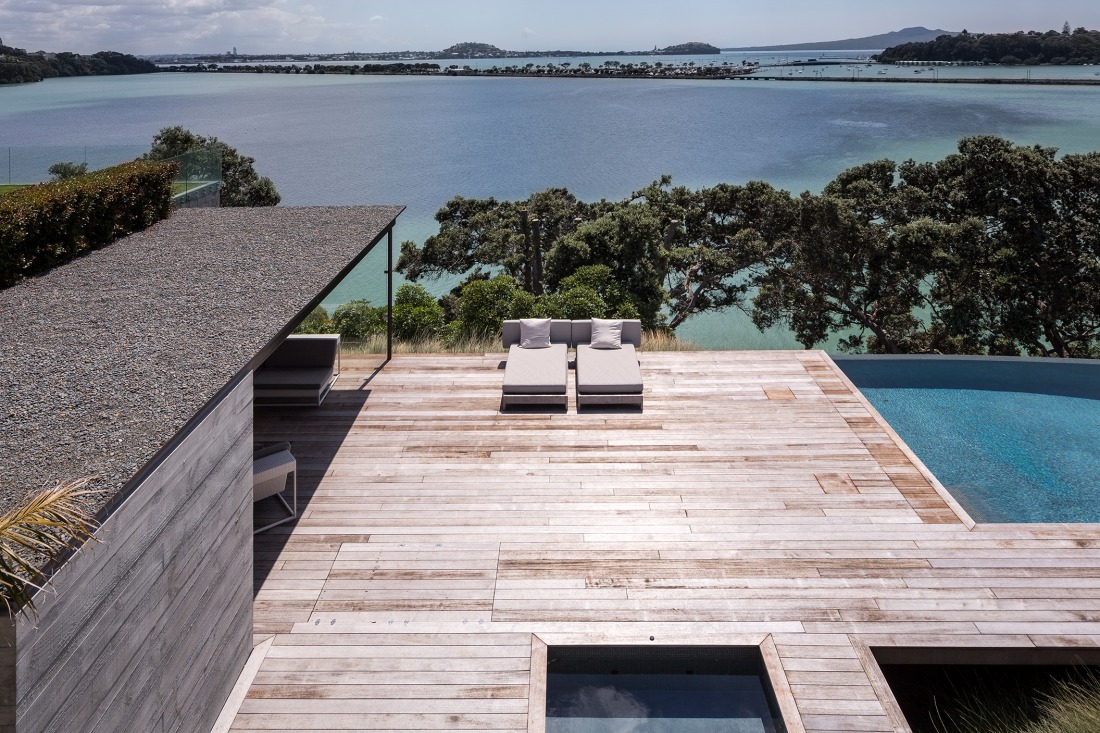

A jack and aluminium framing solution for timber decking provides a durable, adjustable foundation that ensures precise leveling and stability, even on uneven or sloping surfaces. The adjustable jacks allow for easy height customization, while the corrosion-resistant aluminium framing offers a strong, lightweight structure that supports the timber decking securely. This system promotes excellent airflow and drainage beneath the deck, reducing the risk of moisture-related issues like rot or mold. We use ShadowDeck™ Kwila 140x21mm timber decking boards for the ultimate wood finish, paired with our patented timber fasteners that work seamlessly with the FlippnClick aluminium framing, creating a nail-free timber decking solution for low-profile decks over concrete or waterproof membranes. This combination ensures a fast, efficient installation and a long-lasting, low-maintenance deck with a sleek, professional look.
Floating Aluminium Deck Frame Layouts
The flipp’N click™ aluminium framing system has key advantages over traditional timber framing options. The system’s simplicity and lightweight design ensures that even apprentices can quickly master it, making it an efficient and user-friendly option for construction projects. A key feature is the ability to click the frame directly into self-levelling Nurajack head, this feature significantly speeds up installation, making it 80% faster than using timber. The patented aluminium framing is designed with strength in mind to give a wide span between jacks while still offering an incredibly stable surface.
Joist Layout
Designed with spaces with low clearance in mind. The Joists are clipped directly into a Nurajack at 1200 Centres.

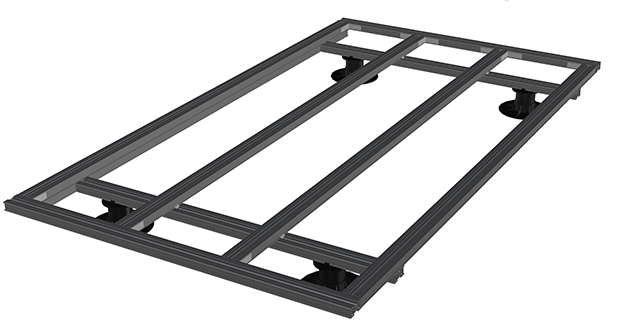

Joist & Bearer Layout
Designed to be extra strong. The Joists are fixed to the bearer using the “Joist to Bearer Side Clips” and the Bearers are clipped into a Nurajack at 1200 centres.
Components- Brackets & Clips
Components used to build the frame.

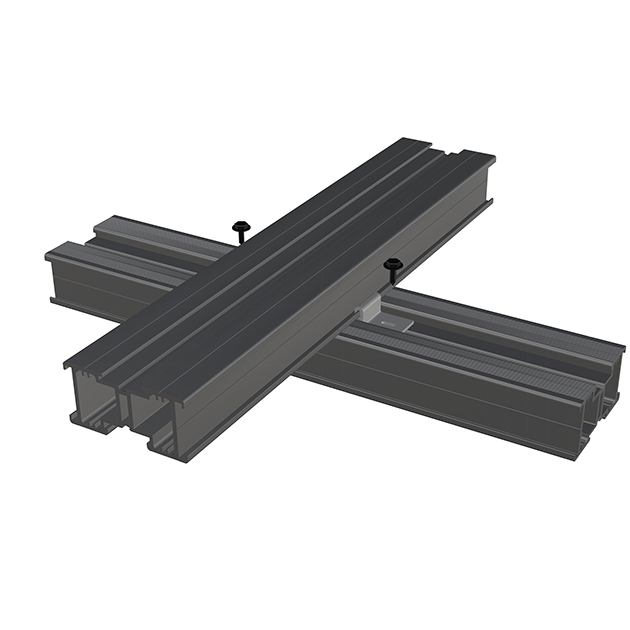

Joist to Bearer Side Clip
Designed for ease of installation, offering the flexibility to be secured with or without screws. You simply turn the side clip into the bearer framing, which locks the edge of your joist framing securely in place. This design ensures a firm and stable connection between the joist and bearer enhancing the overall structural integrity.

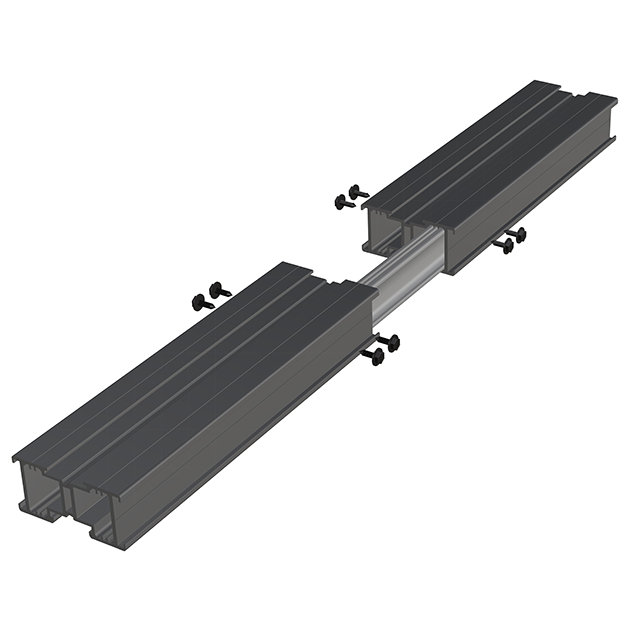

Joist/Bearer Framing Joiner
This component is designed to join and extend your framing or bearer aluminium lengths efficiently. The joiner allows you to extend your framing as required, which makes it easier to adapt the framing to different project requirements, while reinforcing it for additional strength
Joist/Bearer Corner Bracket
Designed for creating 90-degree angle connections in the framing system. The bracket component easily slides inside the frame, and can quickly screw it in place through the pre-drilled bracket holes, ensuring that the screws are properly seated. Its simple installation process provides a secure and precise corner connection.
Would like to find out more about Flippn’Clip?
